byonnd-design

Build Your Own Neural Newtork Design
Vanilla Javascript graphic library to design neural networks on HTML5 canvas

This designer can handle 3 types of neural networks:

• Multilayer Perceptrons (MLP)
• Convolutional Neural Networks (CNN)
• Recurrent Neural Network (RNN)



How to use?

The only thing you need is an HTML Canvas:

Declare your canvas

<canvas id="canvas" width="1100" height="1200" style="background-color: white;"></canvas>

Then, you can instantiate your neural network builder by passing the canvas as parameter:

Instanciate your neural network builder

let neuralNetworkBuilder = new NeuralNetworkBuilder(canvas);

You're now ready to design any kind of neural network among those mentioned above.

Multilayer Perceptron (MLP)

First step, instantiate your new neural network:

let neuralNetwork = neuralNetworkBuilder.build("mlp");

Then, you have two choices. The argument of the function addLayer is the numer of neurons for each layer

Add layers separately

neuralNetwork.addLayer(25);
neuralNetwork.addLayer(20);
neuralNetwork.addLayer(15);
neuralNetwork.addLayer(10);
neuralNetwork.addLayer(5);

Define all layers in one line

neuralNetwork.define([25, 20, 15, 10, 5]);

When your neural network is ready, you can draw it to your canvas

Draw neural network

neuralNetwork.draw();

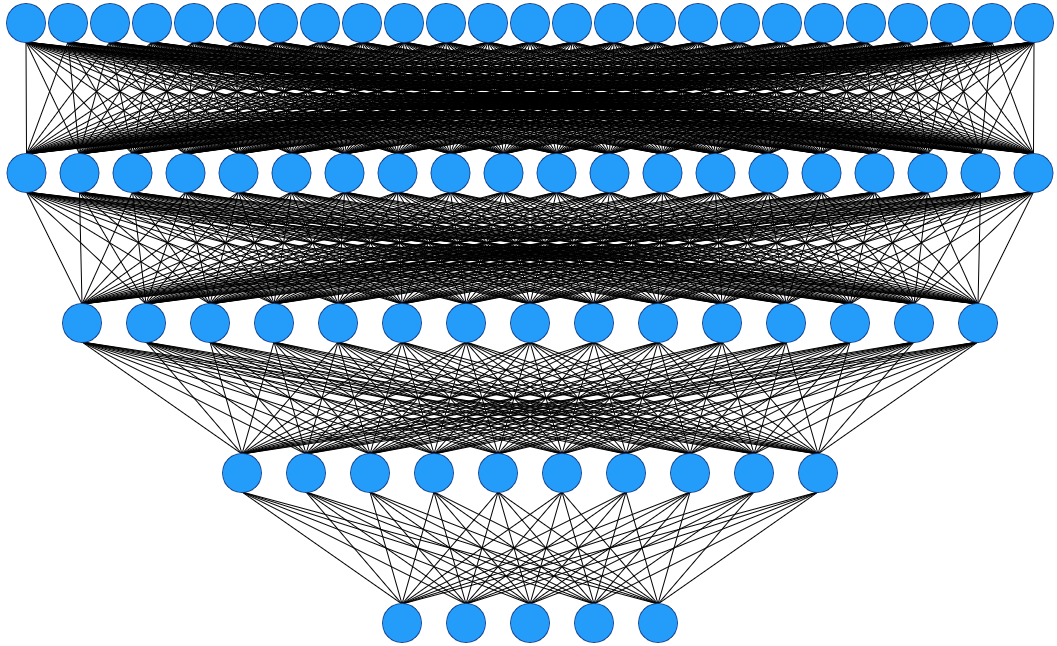

Here's the result:

Assign values to neurons

You can assign values to neuron using its value parameter:

let input_array = "1000101010001000101010001";
for(let i = 0; i < input_array.length; i++) {
    neuralNetwork.layers[0].neurons[i].value = input_array[i];
}
let output_array = "ABCDE";
for(let i = 0; i < output_array.length; i++) {
    neuralNetwork.layers[neuralNetwork.getNbLayers()-1].neurons[i].value = output_array[i];
}

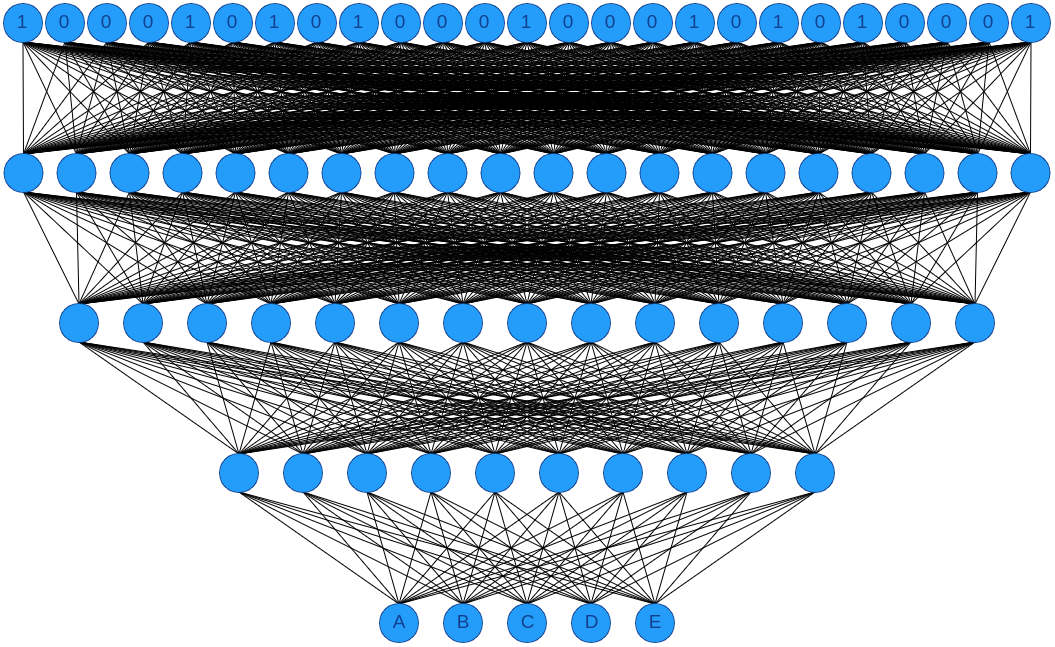

In this example, we assign values to the input neurons and the output neurons.

Convolutional Neural Network (CNN)

First step, instantiate your new neural network:

let neuralNetwork = neuralNetworkBuilder.build("cnn");

Then, you have two choices. The arguments of the function addLayer are:

• x - dimension
• y - dimension
• Number of channels

Add layers separately

neuralNetwork.addLayer(50, 50, 2);
neuralNetwork.addLayer(25, 25, 4);
neuralNetwork.addLayer(12, 12, 8);
neuralNetwork.addLayer(6, 6, 12);
neuralNetwork.addLayer(36);
neuralNetwork.addLayer(26);

Define all layers in one line

neuralNetwork.define([[50, 50, 2], [25, 25, 4], [12, 12, 8], [6, 6, 12], [36, 1, 0], [26, 1, 0]]);

Activate a neuron

You can also activate a neuron in your drawing by the activate function:

neuralNetwork.layers[neuralNetwork.layers.length-1].neurons[0][2].activate();

In this example, we activate the third neuron of the last layer, the output layer.
When your neural network is ready, you can draw it to your canvas

Draw neural network

neuralNetwork.draw();

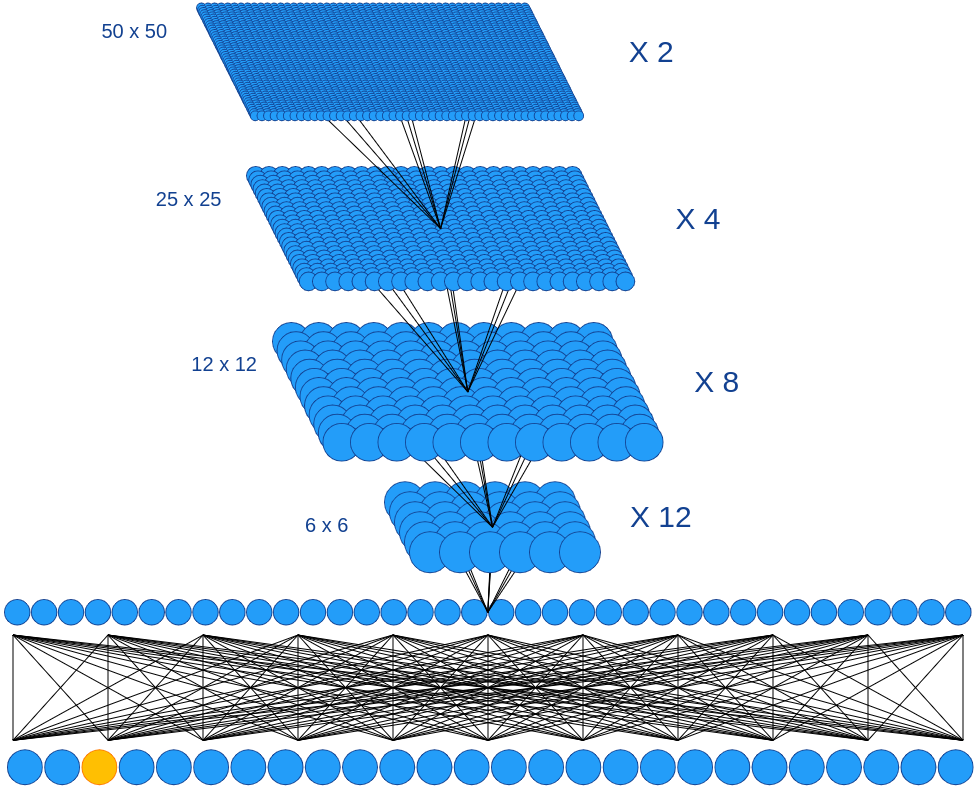

Here's the result:

Recurrent Neural Network (RNN)

First step, instantiate your new neural network:

let neuralNetwork = neuralNetworkBuilder.build("rnn");

Then, you have define your neural network with the define function. The arguments are:

• The length of the serie you want to display
• The number of layers bewteen the input layer and the output layer
• (optional) The data serie you want to display to illustrate your neural network

Define the RNN horizontally

neuralNetwork.define(10, 2, ["h","e","l","l","o","w","o","r","l","d","!"]);

When your neural network is ready, you can draw it to your canvas. By default it draws it horizontally.

Draw neural network

neuralNetwork.draw();

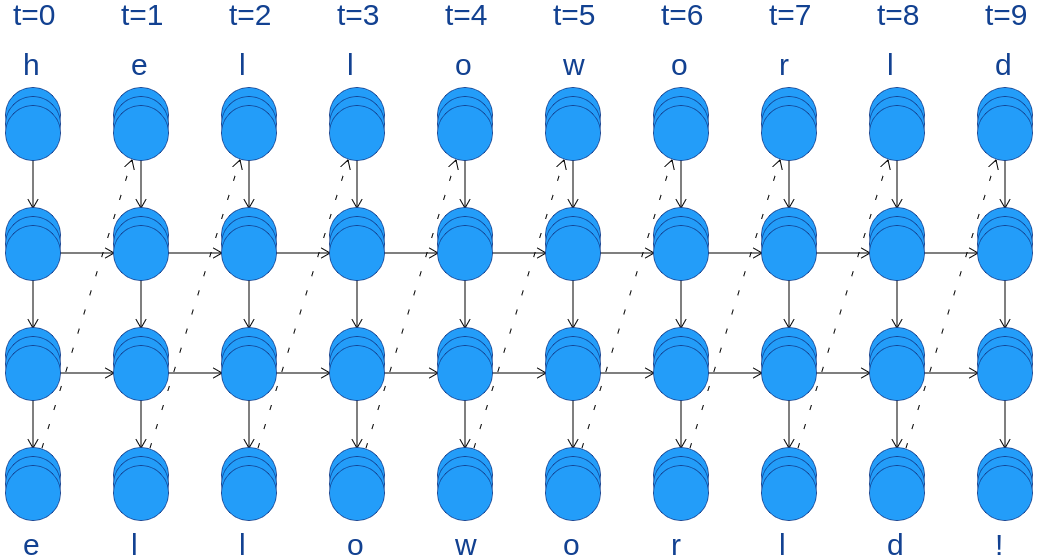

Here's the result:

To change the orientation of the neural network, just add "horizontal" or "vertical" as last parameter.

Define the RNN vertically

neuralNetwork.define(10, 2, ["h","e","l","l","o","w","o","r","l","d","!"], "vertical");

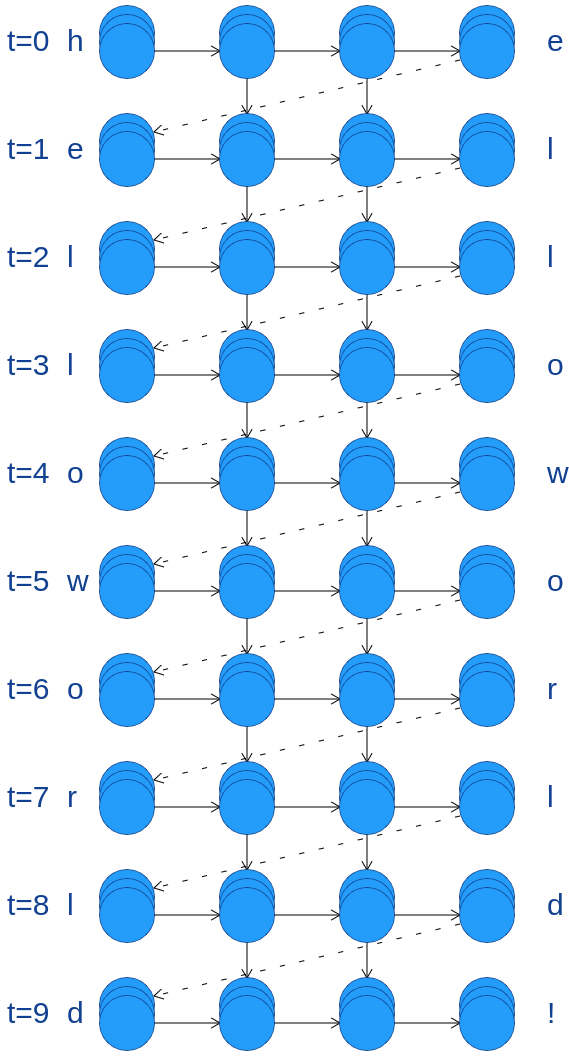

Here's the result:
